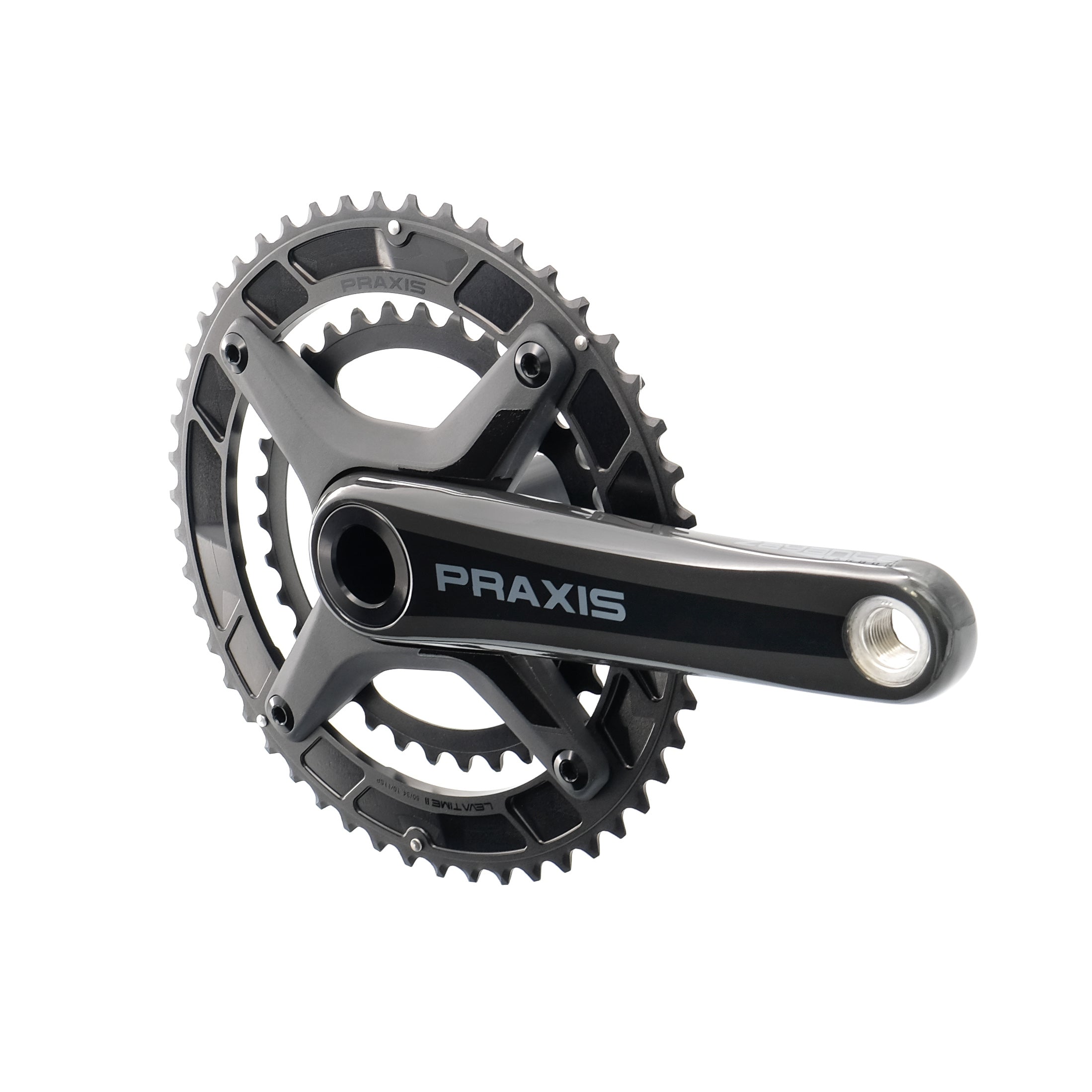

Zayante Carbon 'X' Crankset
Tax included.
ZAYANTE CARBON "X"

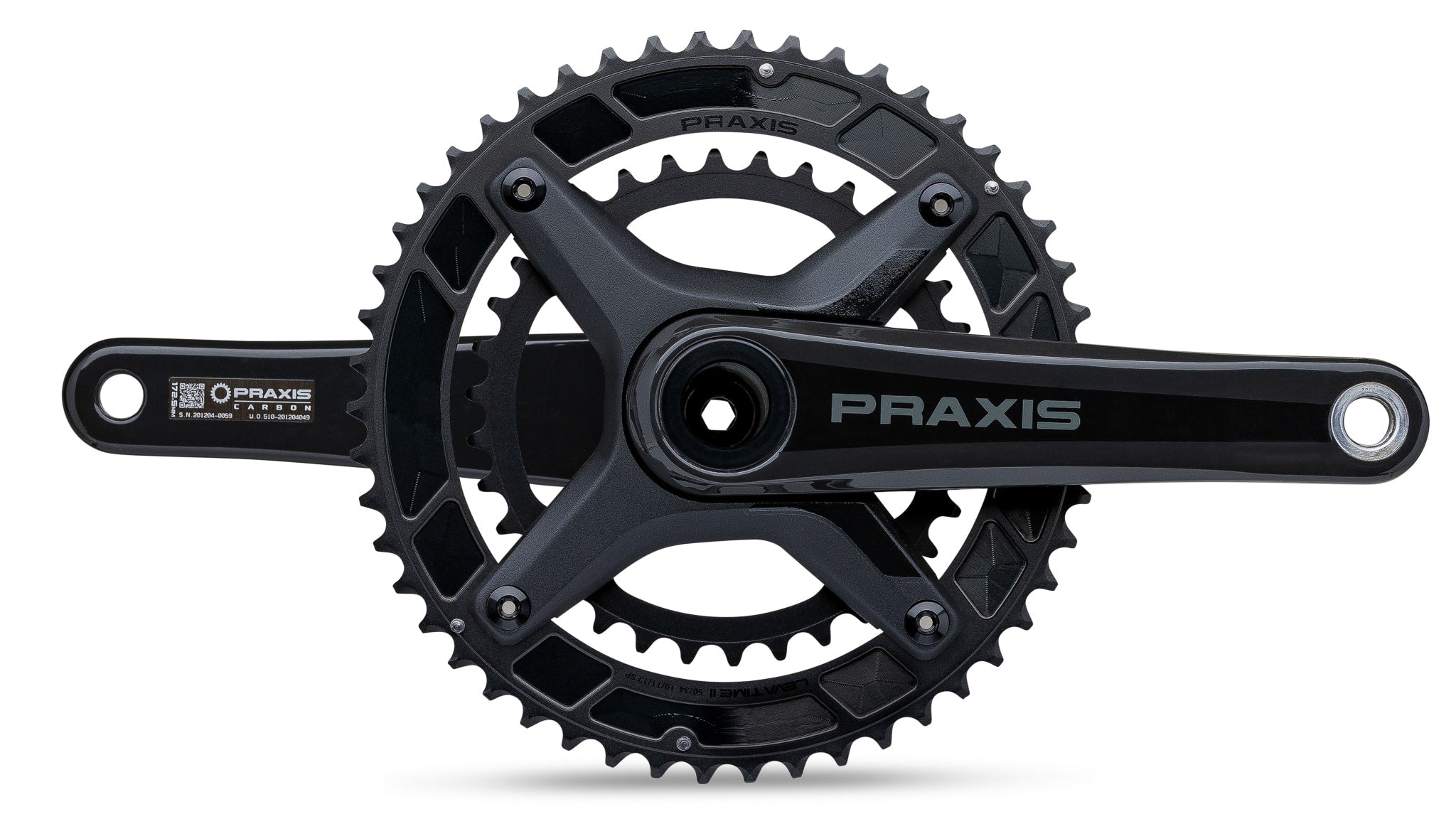

The Northern California Coast and Santa Cruz Mountains are steeped in road riding history. To honor it, we named our new top-level crank Zayante, after the fabled redwood-covered climb so-named – secret training ground for many local pros. The Zayante Carbon is the ultimate marriage of lightness, stiffness and versatility.
SPECIFICATIONS

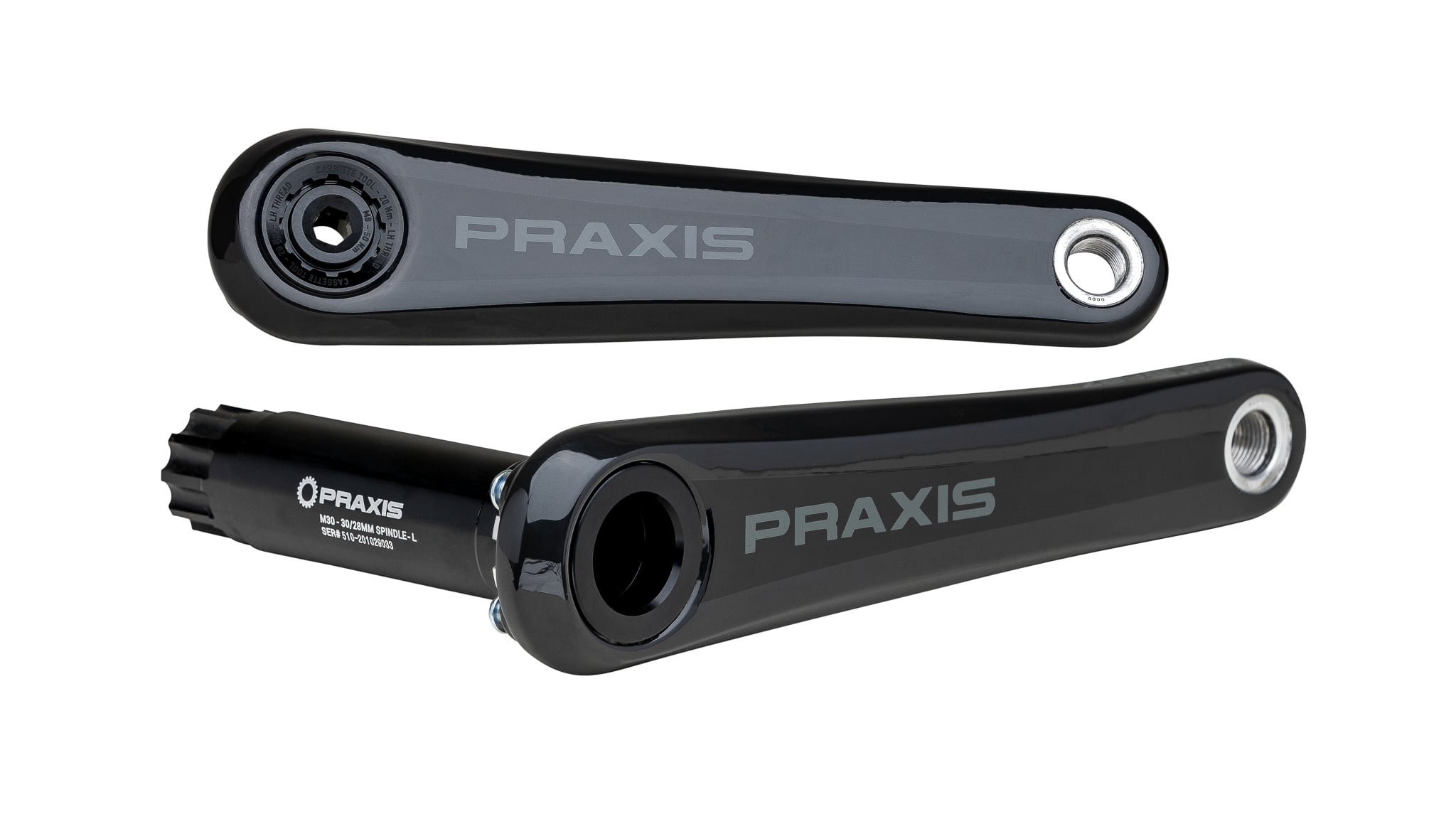

- Full crank or Arm Set Only.
- Carbon Fiber Arms 160/ 165 / 170 / 172.5 / 175 lengths

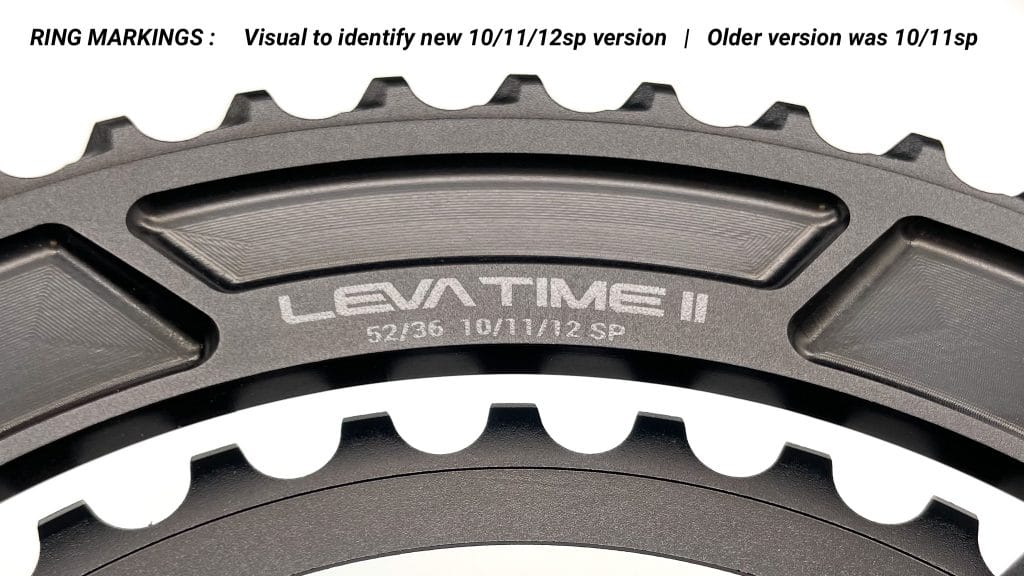

- Levatime II X-Spider/Rings
- 48/32, 50/34, 52/36, 53/39 | 10/11/12sp
- M30 Alloy Spindle | 30MM DRIVE / 28MM NonDRIVE

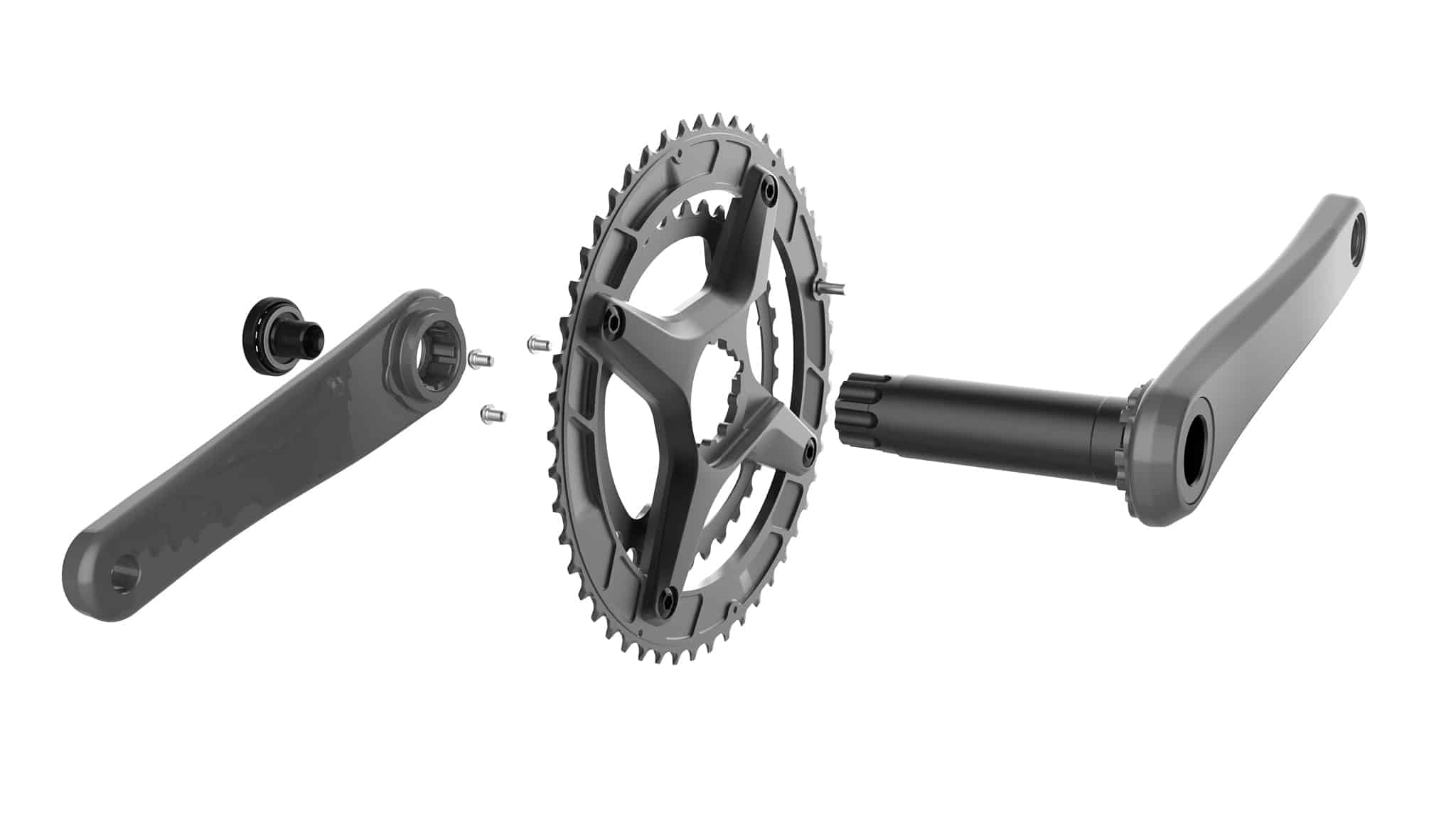

- 8mm Alloy Main crank bolt for Install/Self-Extract
- Weight : 172.5 Armset 408g +/- | 620g +/- (172.5 with 50/34)

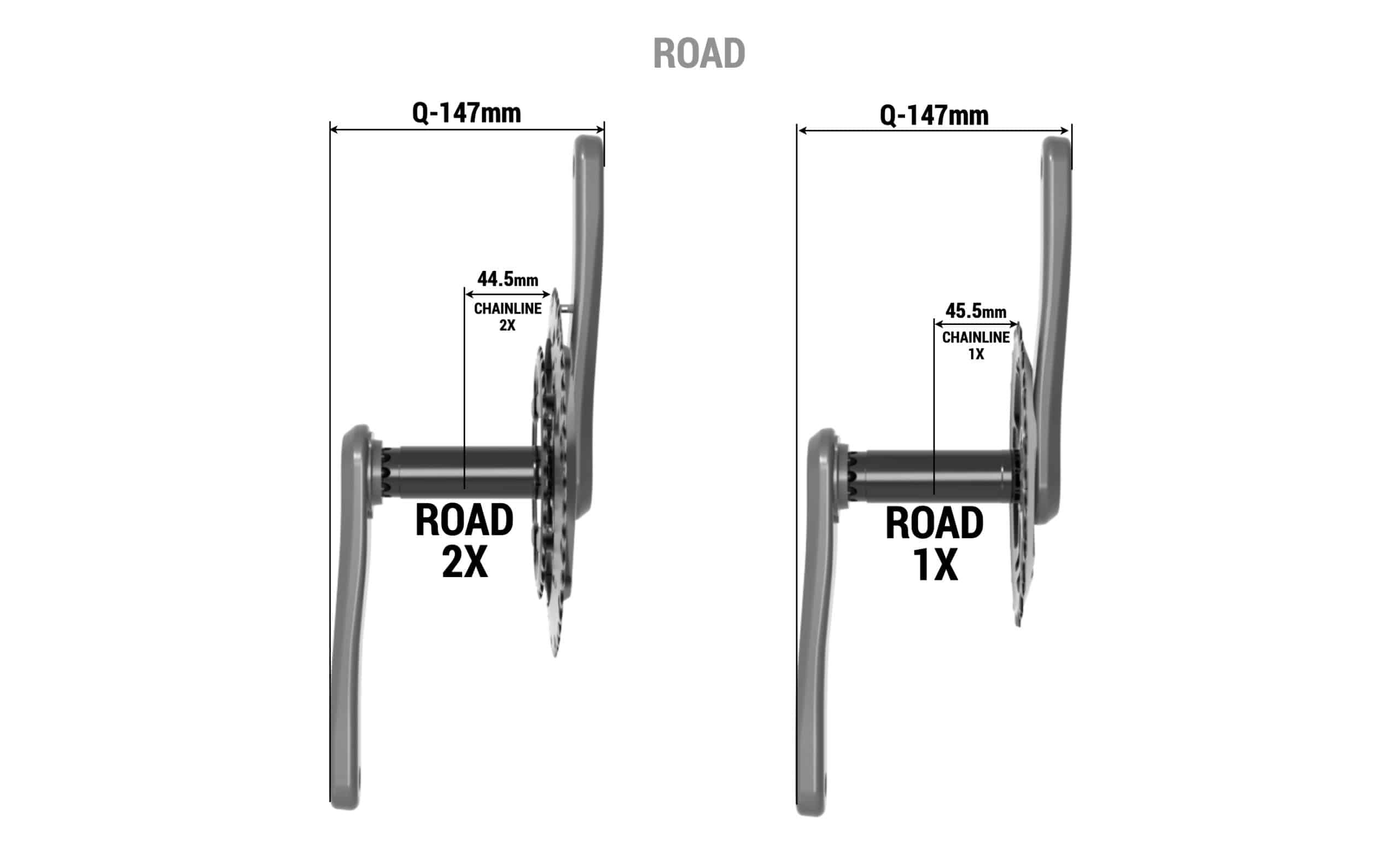

- Q-Factor : 147mm
- 2X CHAINLINE : 44.5mm | 1X CHAINLINE : 45.5mm
- INSTRUCTION MANUAL
COMPATIBILITY
BB - Praxis M30 road cranks require our M30 family of BBs. These BBs have a 30mm Drive and a 28mm NonDrive Bearing. Versions offered : BSA / BB30-PF30 / BB86-BB90-BB92 / BBright / 386EVO / T47 E.B. / T47 I.B.

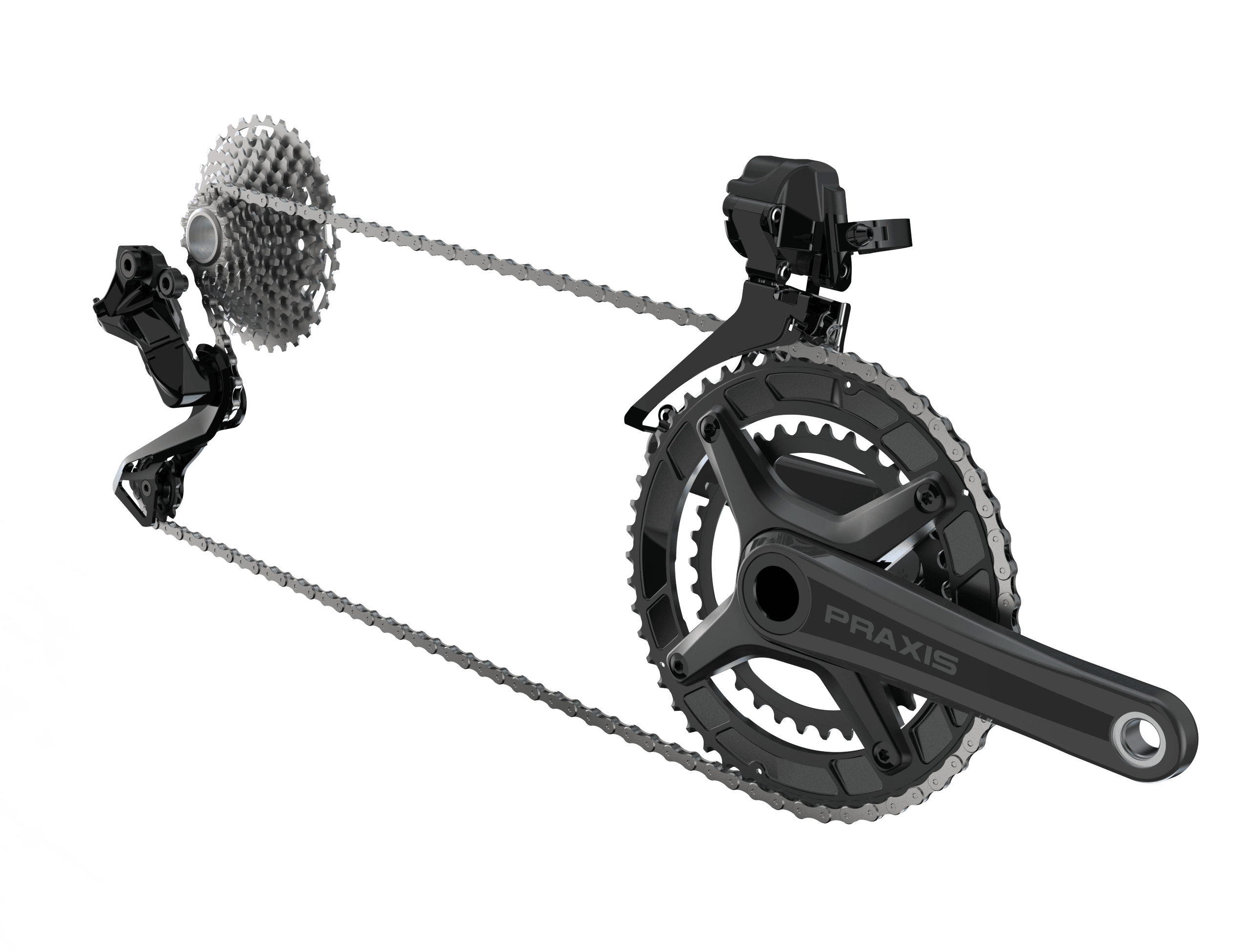

SHIMANO - Compatible with both Di2 and mechanical 10/11/12sp Shimano chains/drivetrains.
SRAM - Compatible with both ETap and mechanical 10/11/12sp SRAM chains/drivetrains. This includes the new 'AXS' flat chain.
CAMPY - Compatible with both EPS and mechanical 10/11/12sp Campy chain/drivetrains
MAIN BOLT - These cranks use our M30 alloy Main bolt/Self extractor.
POWER – Aftermarket options for this crank
- Power2Max – NG and NG Echo 3-Bolt Power Meter
- SRM – 3-Bolt Spider Power Meter
- GARMIN – Power Pedals
- LOOK – Power Pedals
- Velocomp – PowerPod
- QUARQ – Older 3-Bolt “Elsa” or “Riken” models. (Discontinued)
TECHNOLOGY
- Carbon fiber arms
- Cold Forged manufactured ring sets – LEARN MORE
- 2X LevaTime II shifting tech – LEARN MORE

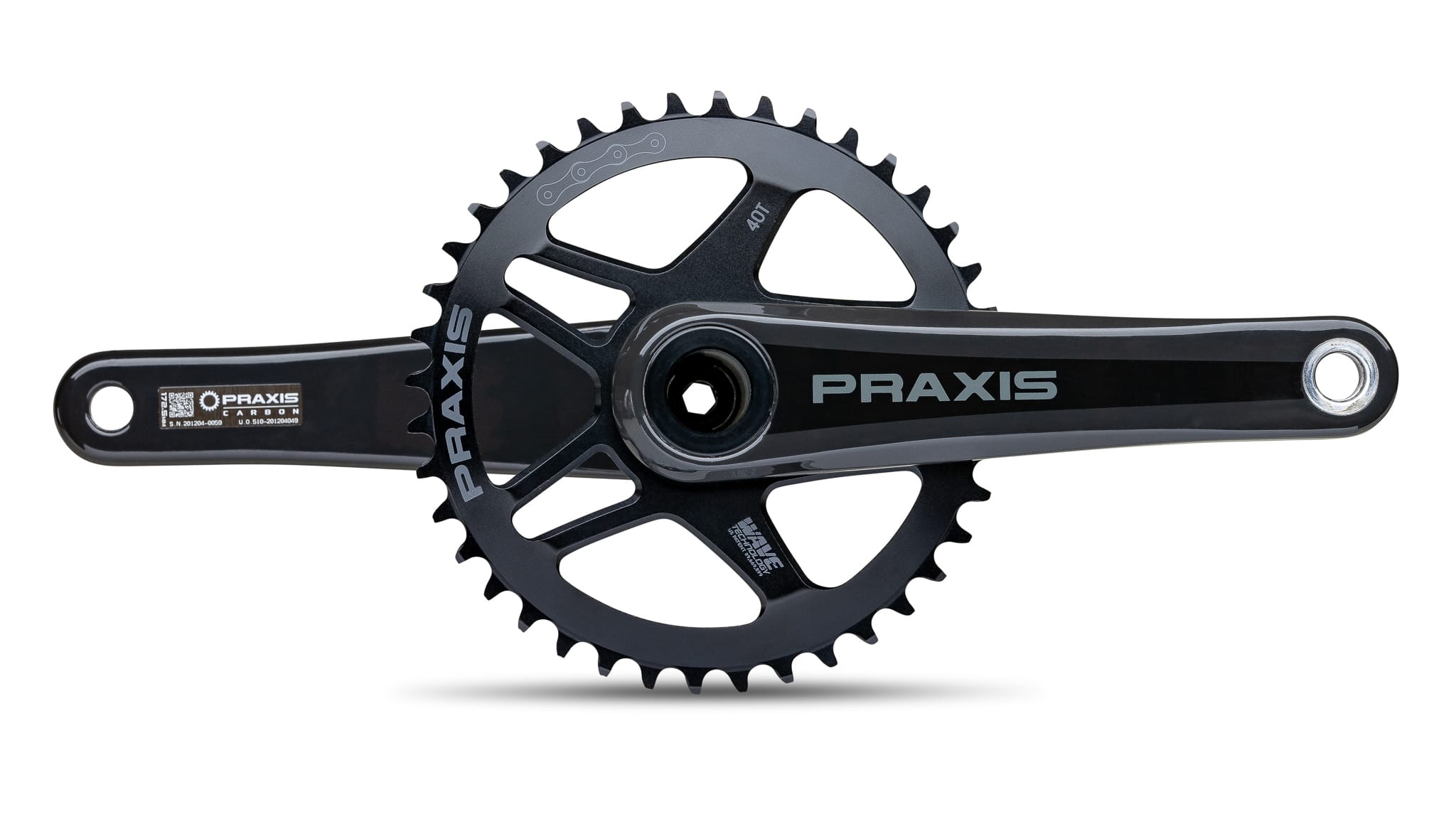

- 1X Wave™ tooth profile rings. LEARN MORE
