Alba Road Crankset
Tax included.
Description

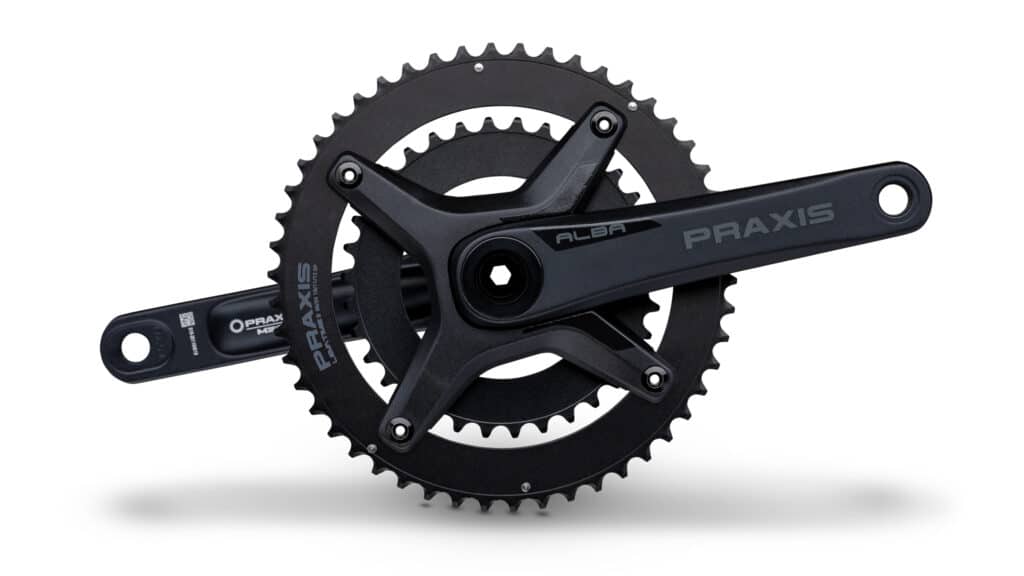

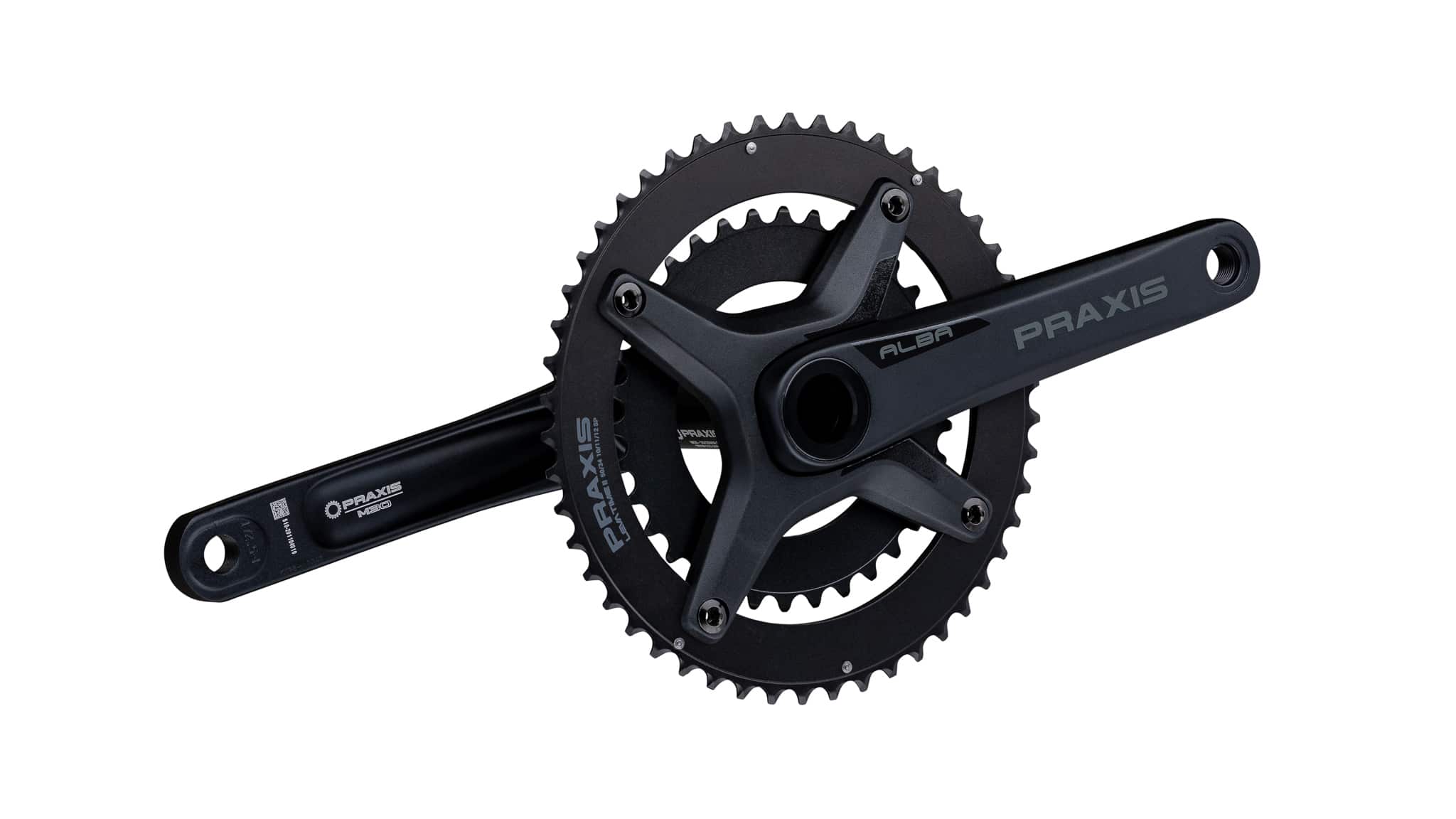

Deep in the hills of Santa Cruz, cyclists are met by a nasty, four mile, 1800 ft. climb named Alba Road. This respected ascent was the inspiration for our Alba road crank. With its shapely forged-alloy arms, M30 alloy spindle, new LevaTime II X-Spider and rings the Alba is ready for anything.
SPECIFICATIONS
- Forged Alloy Arms 160/ 165 / 170 / 172.5 / 175 lengths

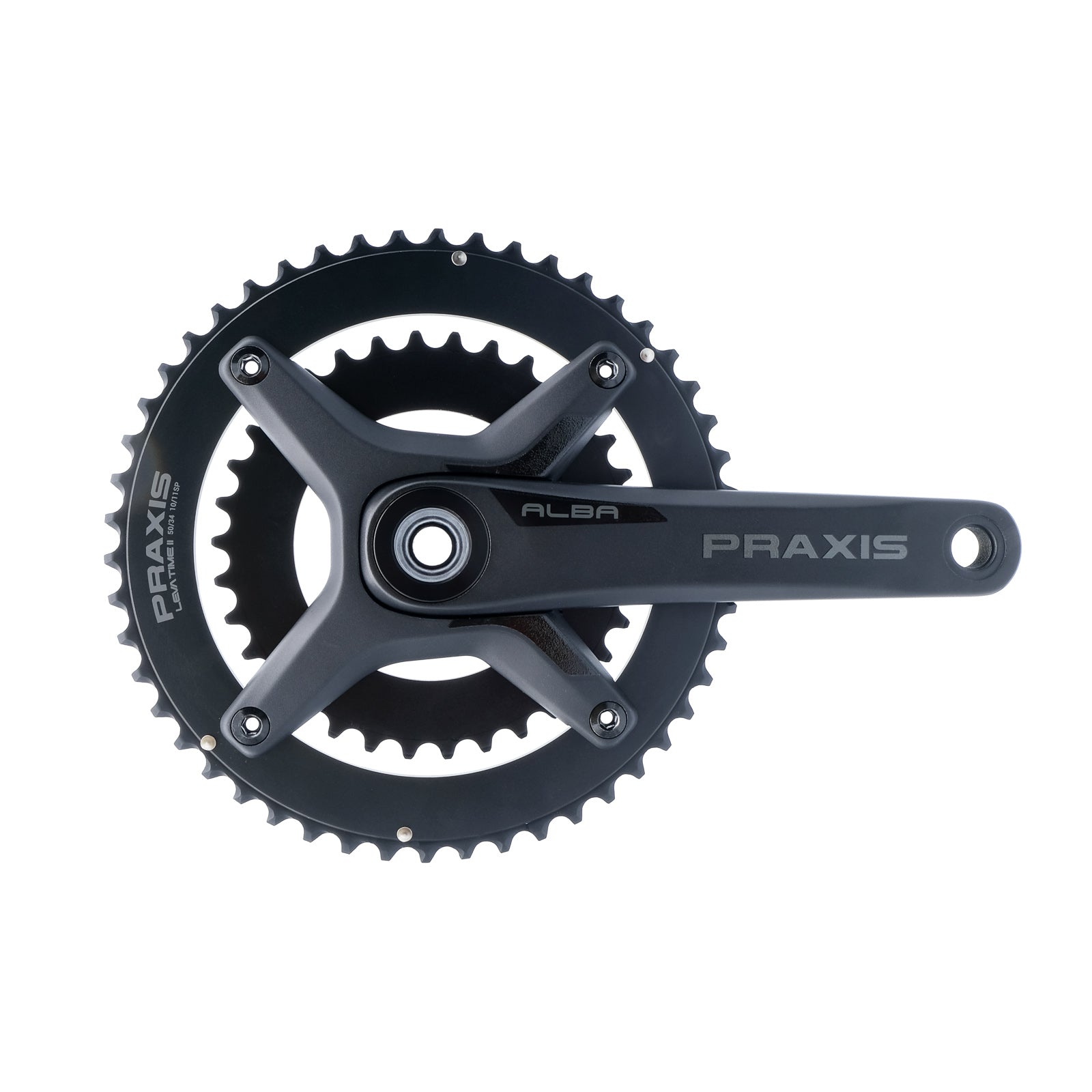

- Levatime II X-Spider/Rings | Simplified X-Rings w/Steel bolts

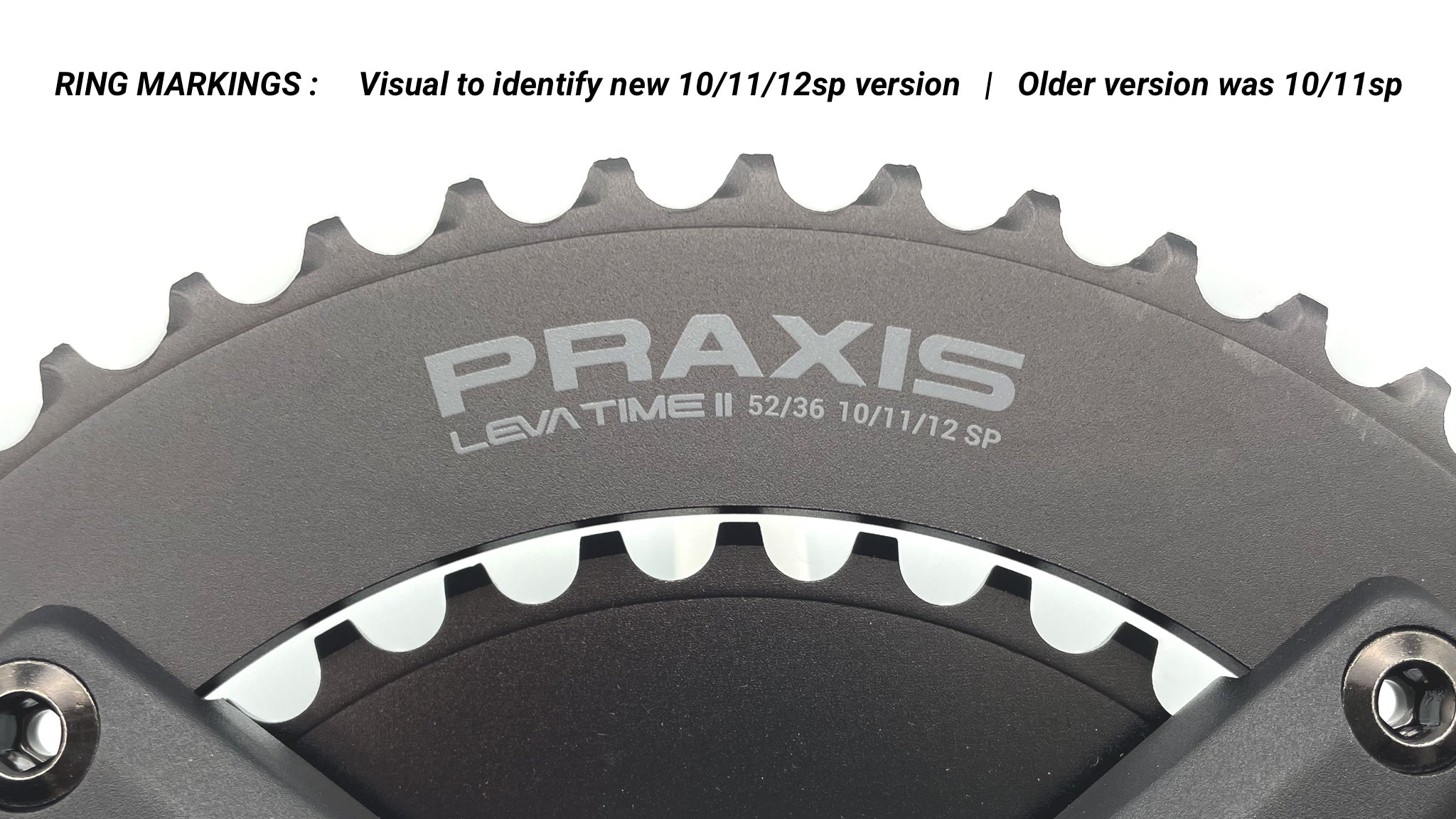

- 48/32, 50/34, 52/36 | 10/11/12sp
- M30 Alloy Spindle | 30MM DRIVE / 28MM NonDRIVE
- 8mm Alloy Main crank bolt for Install/Self-Extract
- Weight : 800g +/- (172.5 with 50/34)

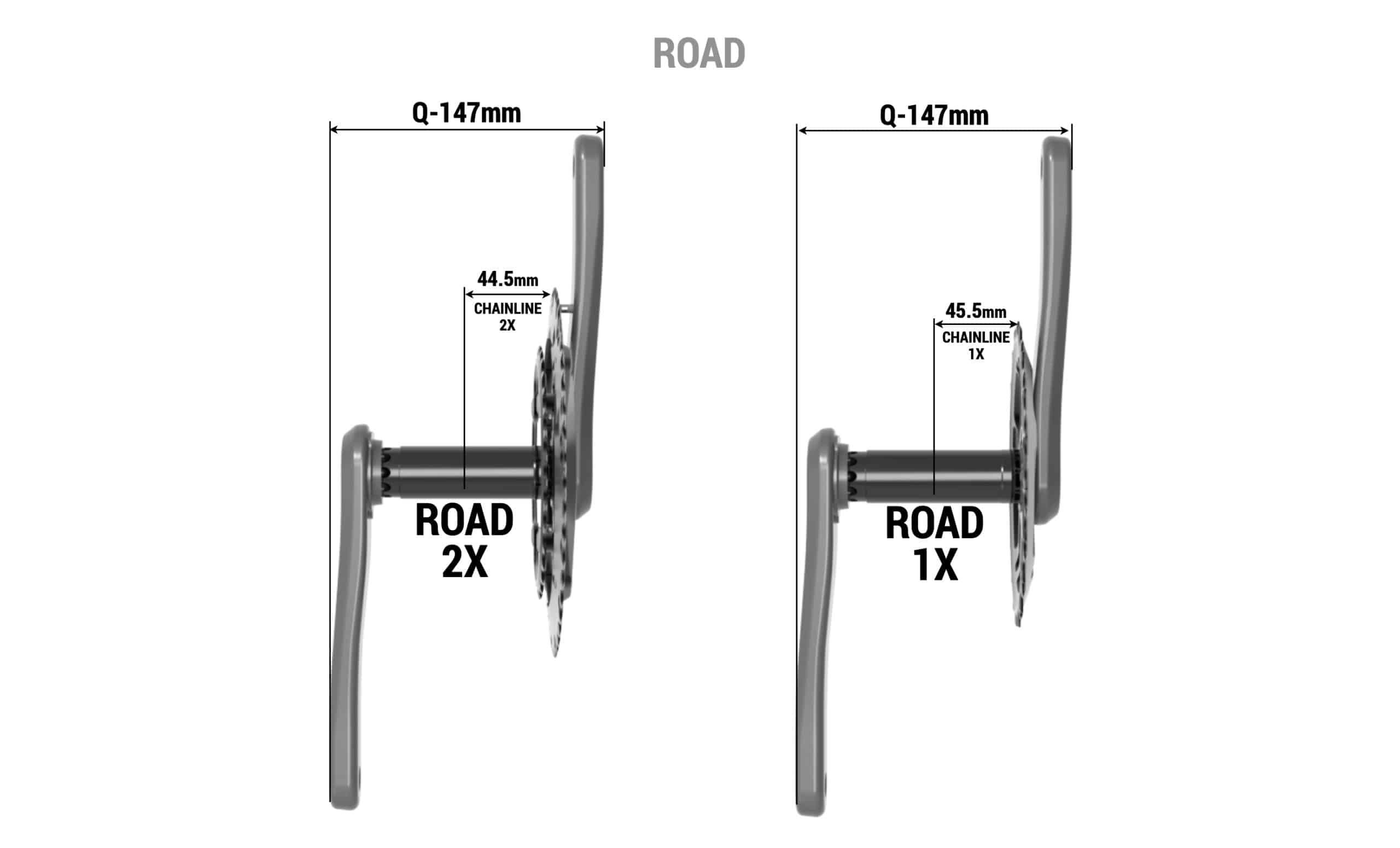

- Q-Factor : 147mm
- 2X CHAINLINE : 44.5mm | 1X CHAINLINE : 45.5mm
- INSTRUCTION MANUAL
COMPATIBILITY

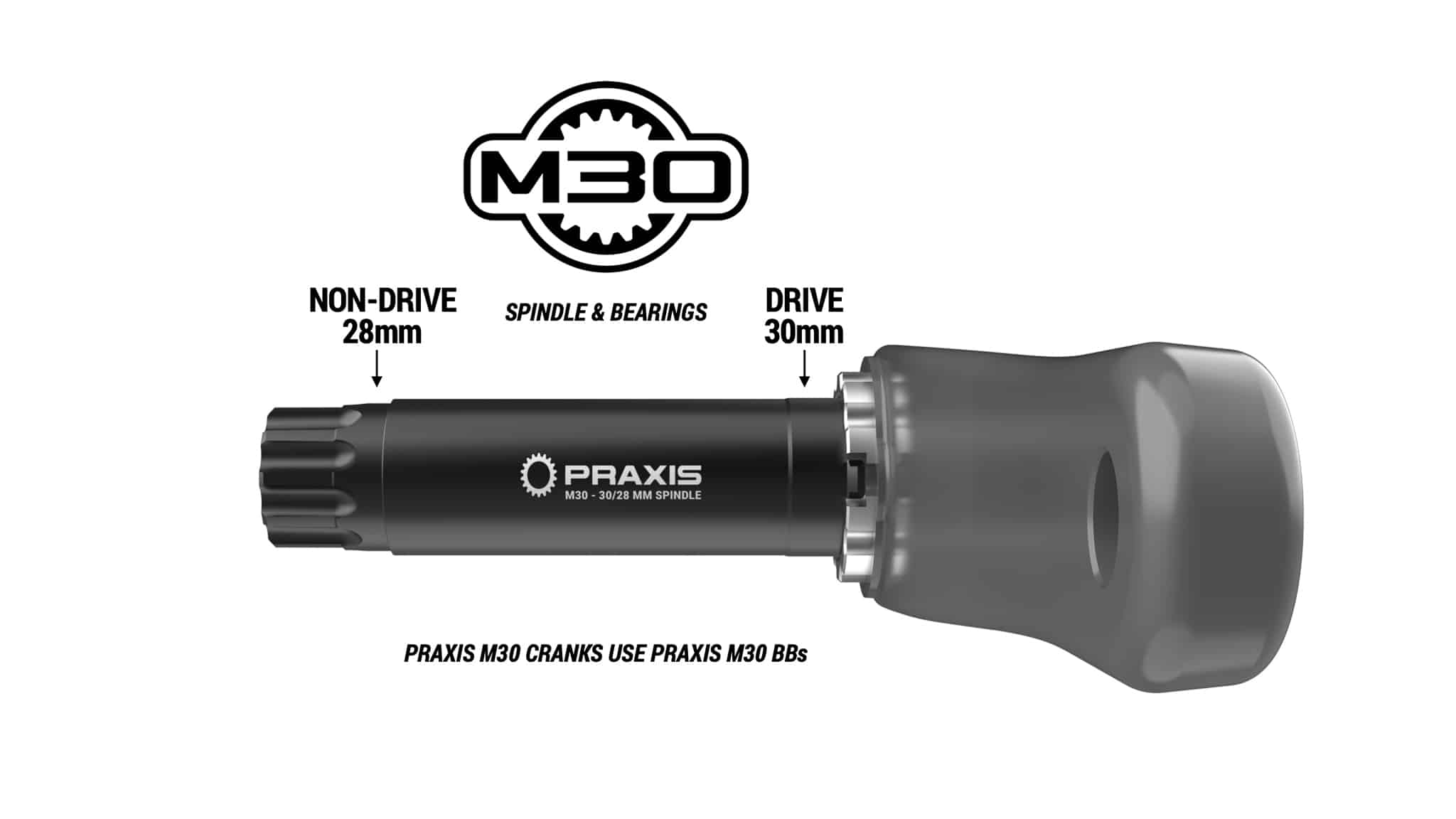

BB - Praxis M30 road cranks use our M30 family of BBs. These BBs have a 30mm Drive and a 28mm NonDrive Bearing. Versions offered : BSA / BB30-PF30 / BB86-BB90-BB92 / BBright / 386EVO / T47 E.B. / T47 I.B. M30 BBs HERE

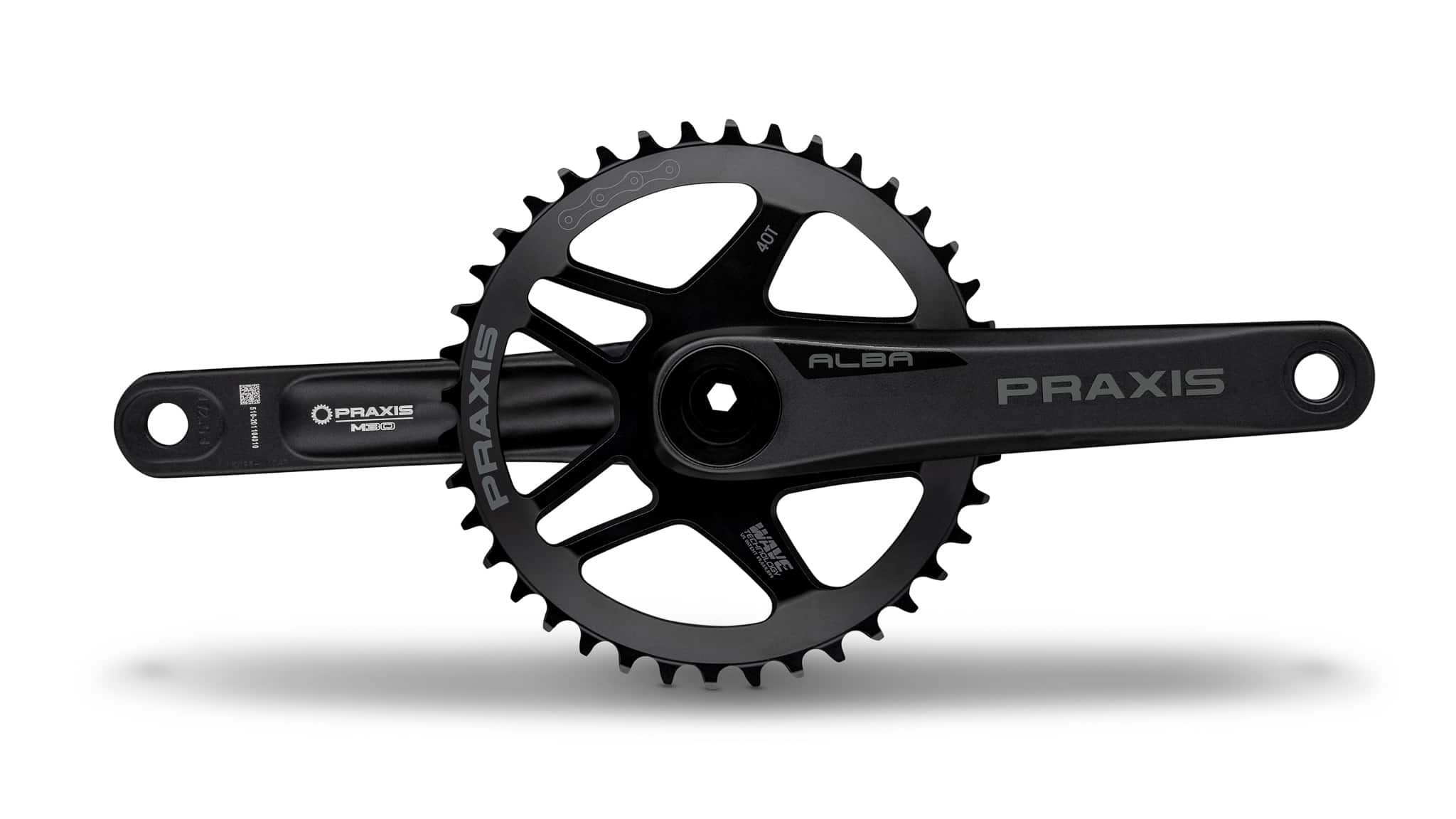

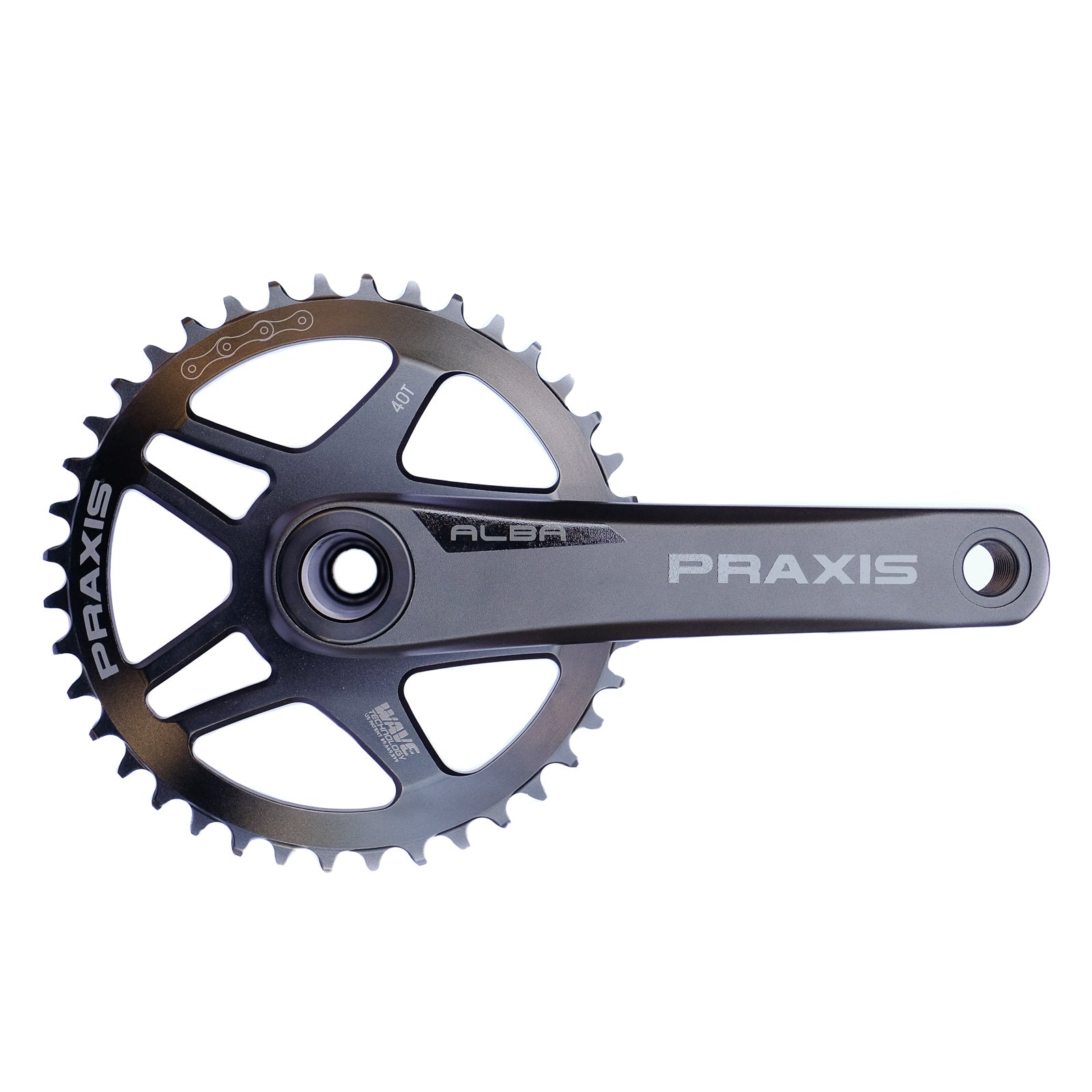

1X - Direct Mount 1X Rings HERE
SHIMANO - Compatible with both Di2 and mechanical 10/11/12sp Shimano chains/drivetrains.
SRAM - Compatible with both ETap and mechanical 10/11/12sp SRAM chains/drivetrains. This includes the new 'AXS' flat chain.
CAMPY - Compatible with both EPS and mechanical 10/11/12sp Campy chain/drivetrains
MAIN BOLT - These cranks use our M30 alloy Main bolt/Self extractor. Replacements Here
POWER – Aftermarket options for this crank :
- Power2Max – NG and NG Echo 3-Bolt Power Meter
- SRM – 3-Bolt Spider Power Meter
- GARMIN – Power Pedals
- LOOK – Power Pedals
- Velocomp – PowerPod
- QUARQ – Older 3-Bolt “Elsa” or “Riken” models. (Discontinued)
TECHNOLOGY
- Forged aluminum arms
- Cold Forged manufactured ring sets – LEARN MORE
- 2X LevaTime II shifting tech – LEARN MORE
- 1X Wave™ tooth profile rings. LEARN MORE
