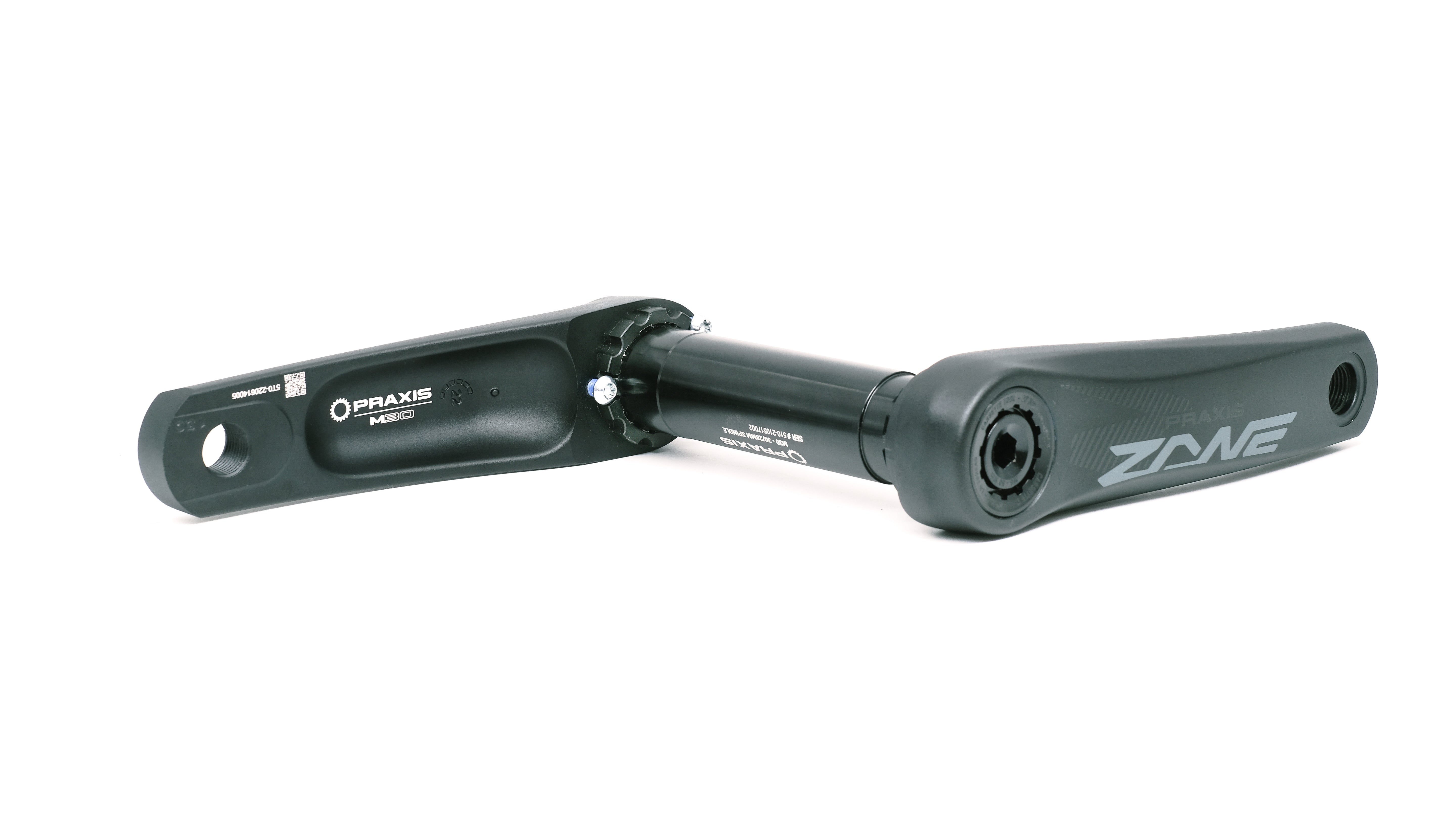

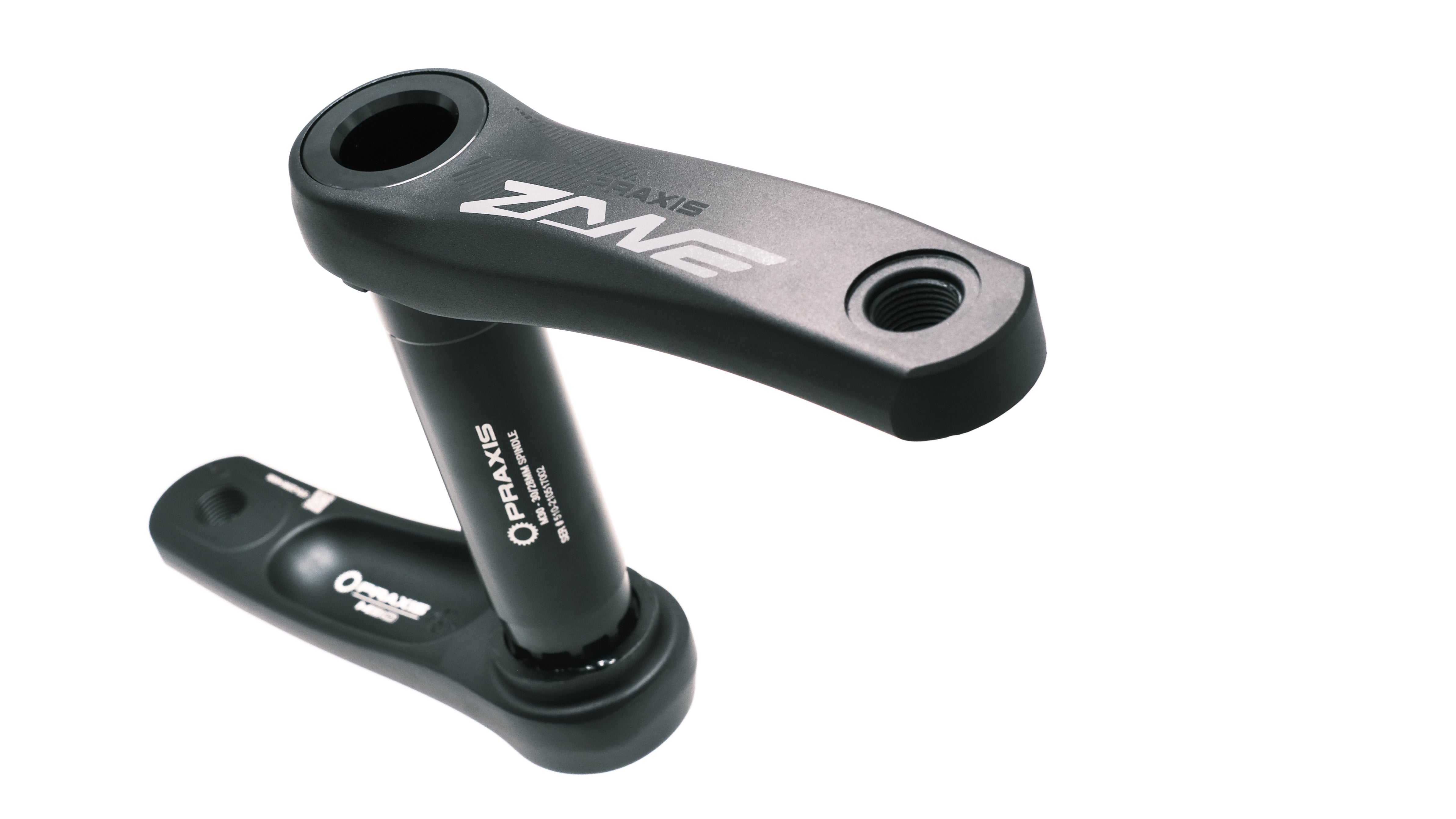

Zane M30 MTN Crankset
The new lightweight Zane youth cranks are perfect for all types of XC and trail riding. Made for kids bikes to lighten things up and add premium parts to their build.
120mm | 130mm | 140mm | 150mm
|INSTRUCTIONS||⚠️ VIEW MANUAL HERE|
|CRANK / USE||ZANE : Youth / Kids MTN crank arm sets
See dropdown menu for offered arm sets
|BUY THIS IF :||You are looking for a lightweight alloy Youth arm set in shorter lengths.|
|MATERIAL||120mm / 130mm / 140mm / 150mm
Forged Alloy Arms | Alloy M30 spindle (30mm/28mm)
|WEIGHT||522g : ZANE 130mm Arm set (Ref. Length)|

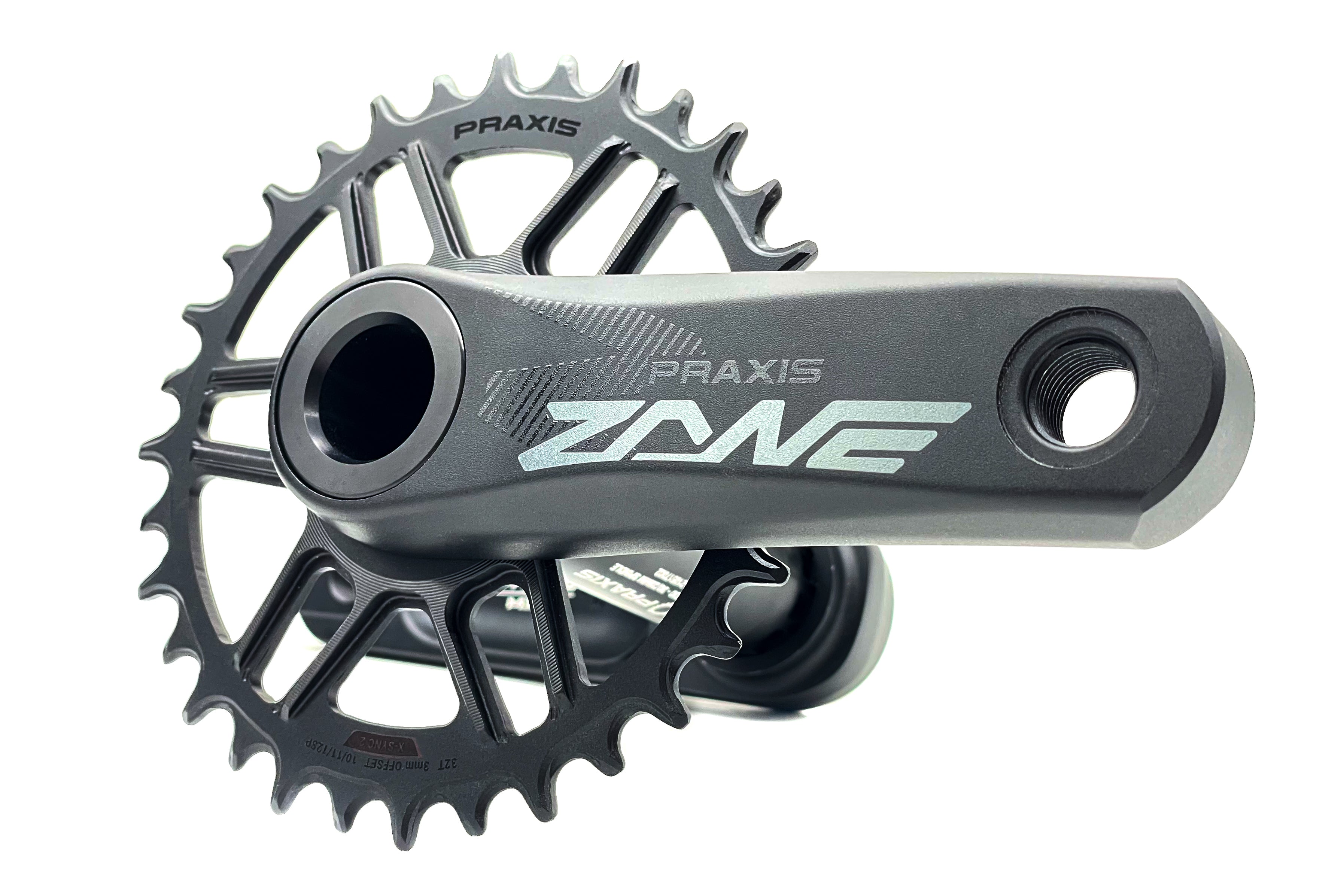

|CHAINRING||Any brand 3-Bolt Direct Mount ring can be used for SRAM & SHIMANO Compatibility
The chainring type and offset determines compatibility with any given MTN bike drivetrain.
|0mm Offset Ring = 55mm CL
3mm Offset Ring = 52mm CL "Boost"
6mm Offset Ring = 49mm CL "Non-Boost"
M30 MAIN BOLT/SELF-EXTRACTOR
8mm Alloy Main crank bolt for Install/Self-Extract
|B.B.||This crank requires our Praxis M30 BB | 30mm Drive Bearing / 28mm NonDrive Bearing
M30 BOTTOM BRACKET (REQUIRED) | BSA / BB90-92 / T47 E.B / BB30 / PF30
