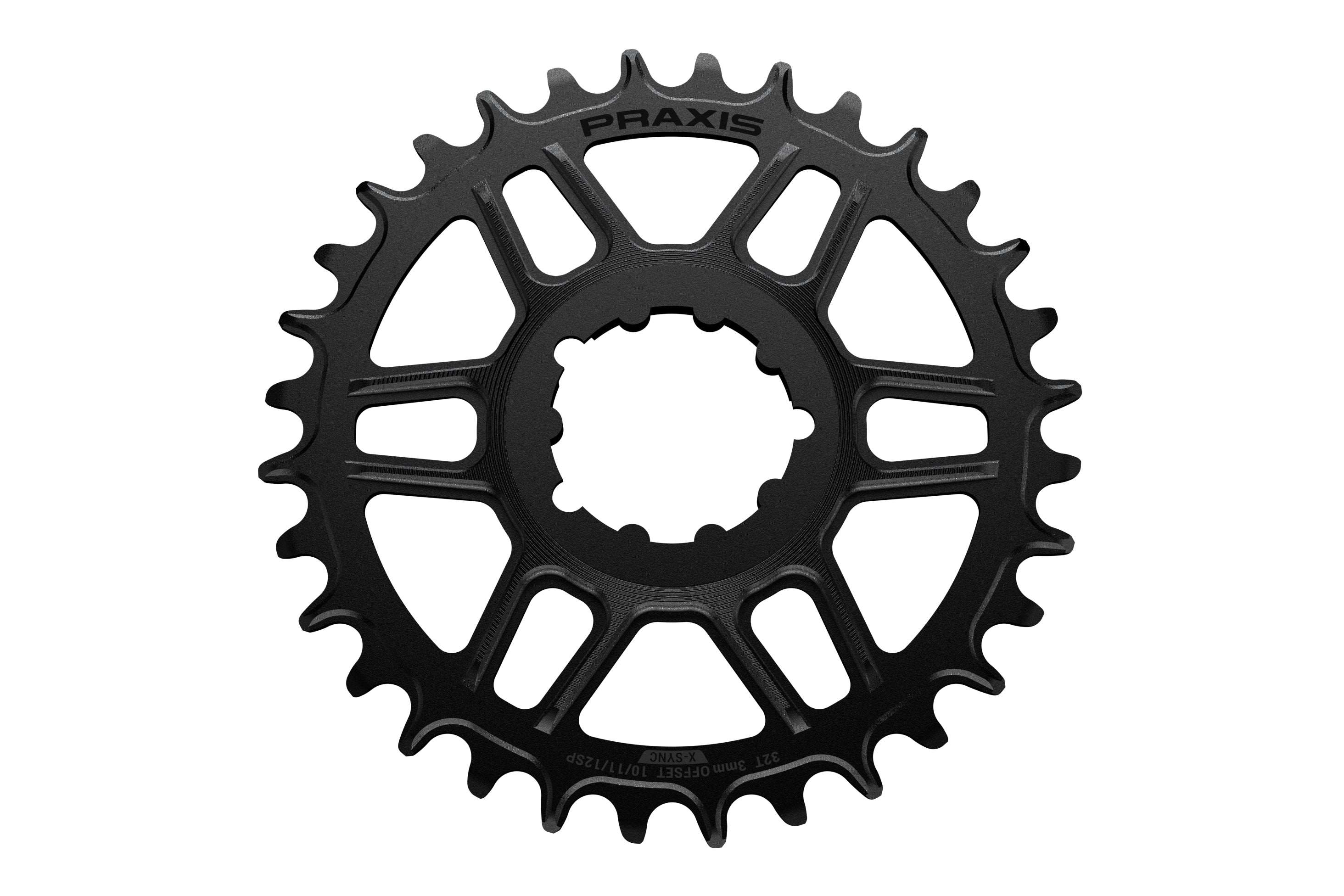

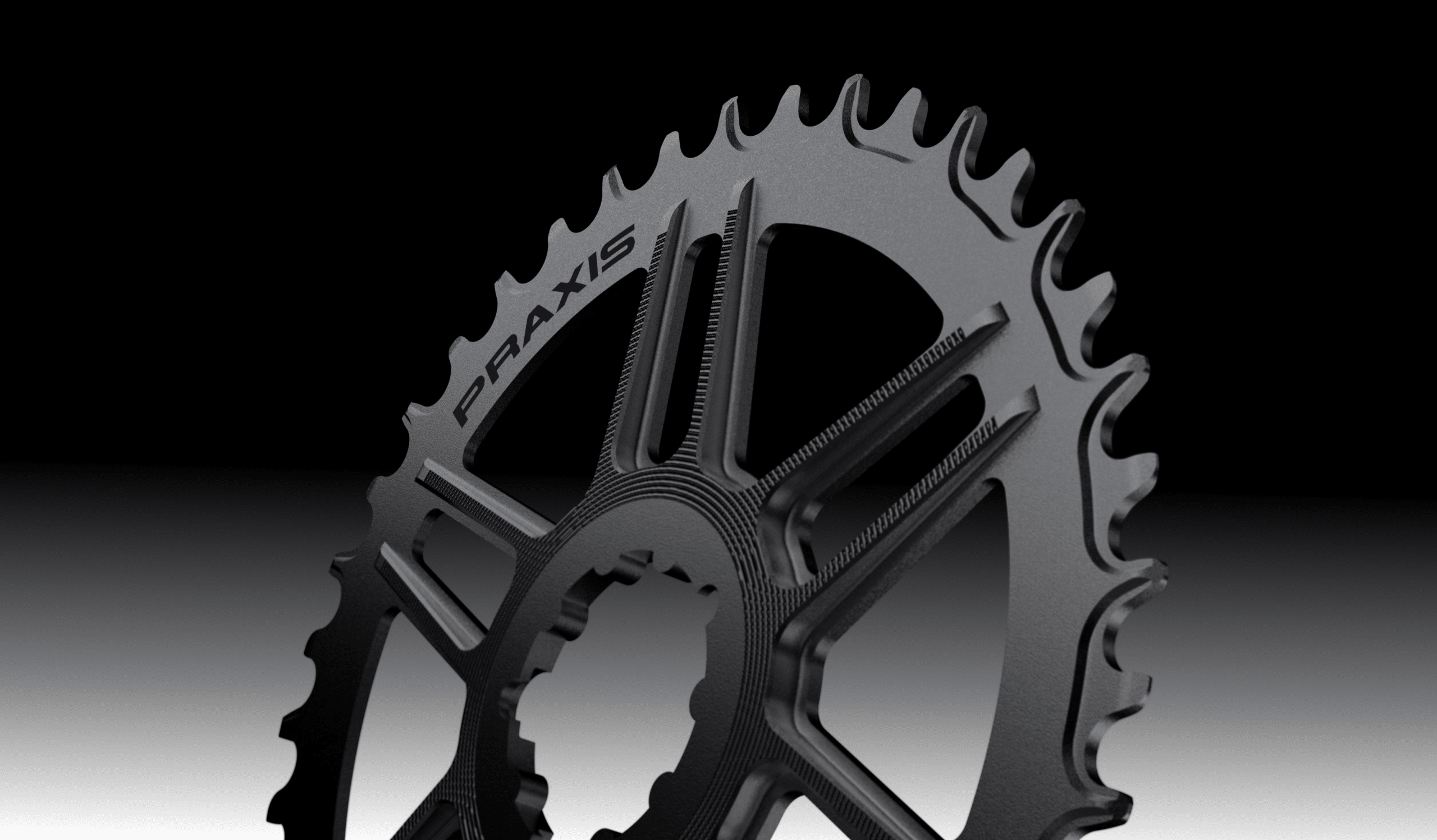

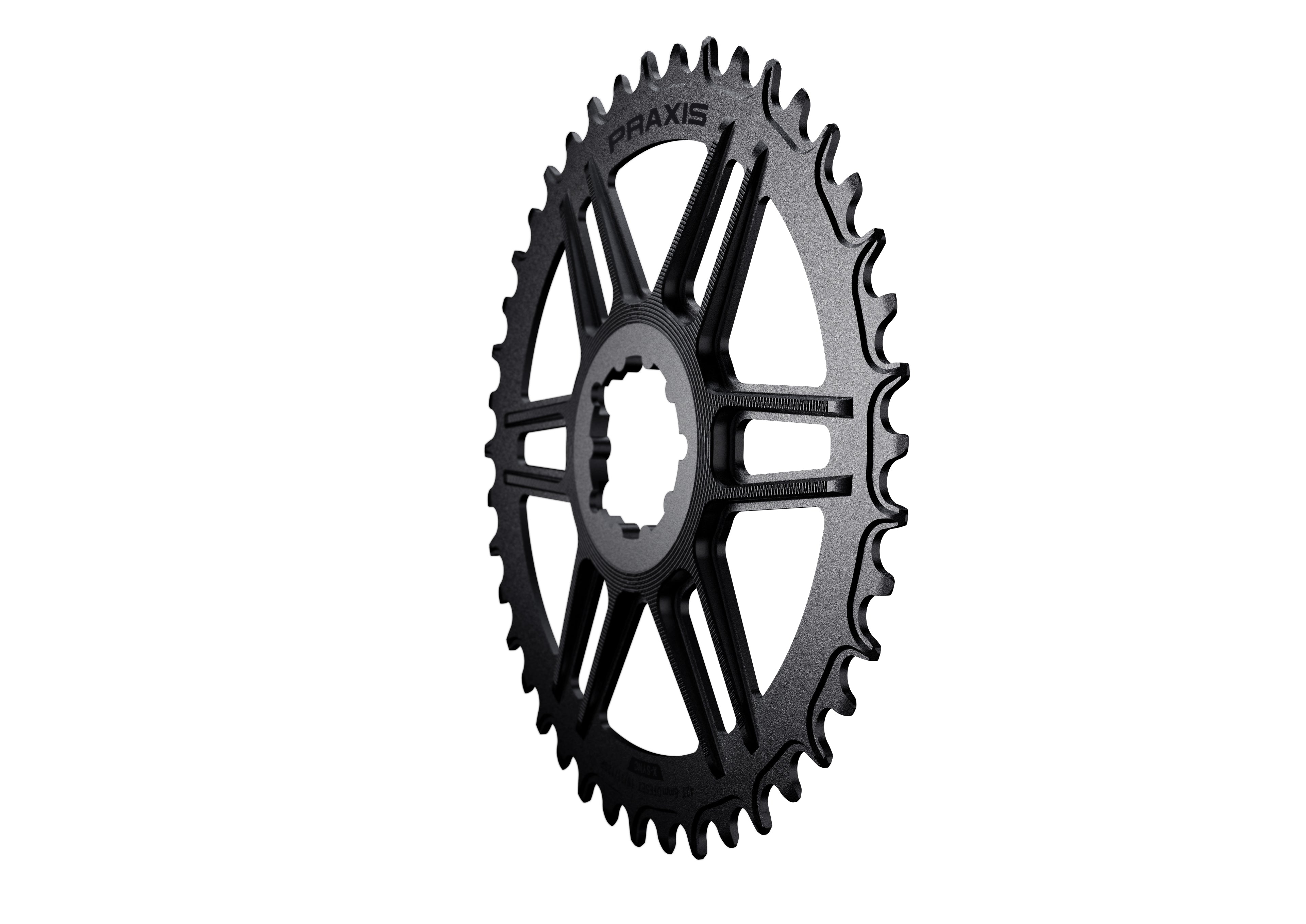

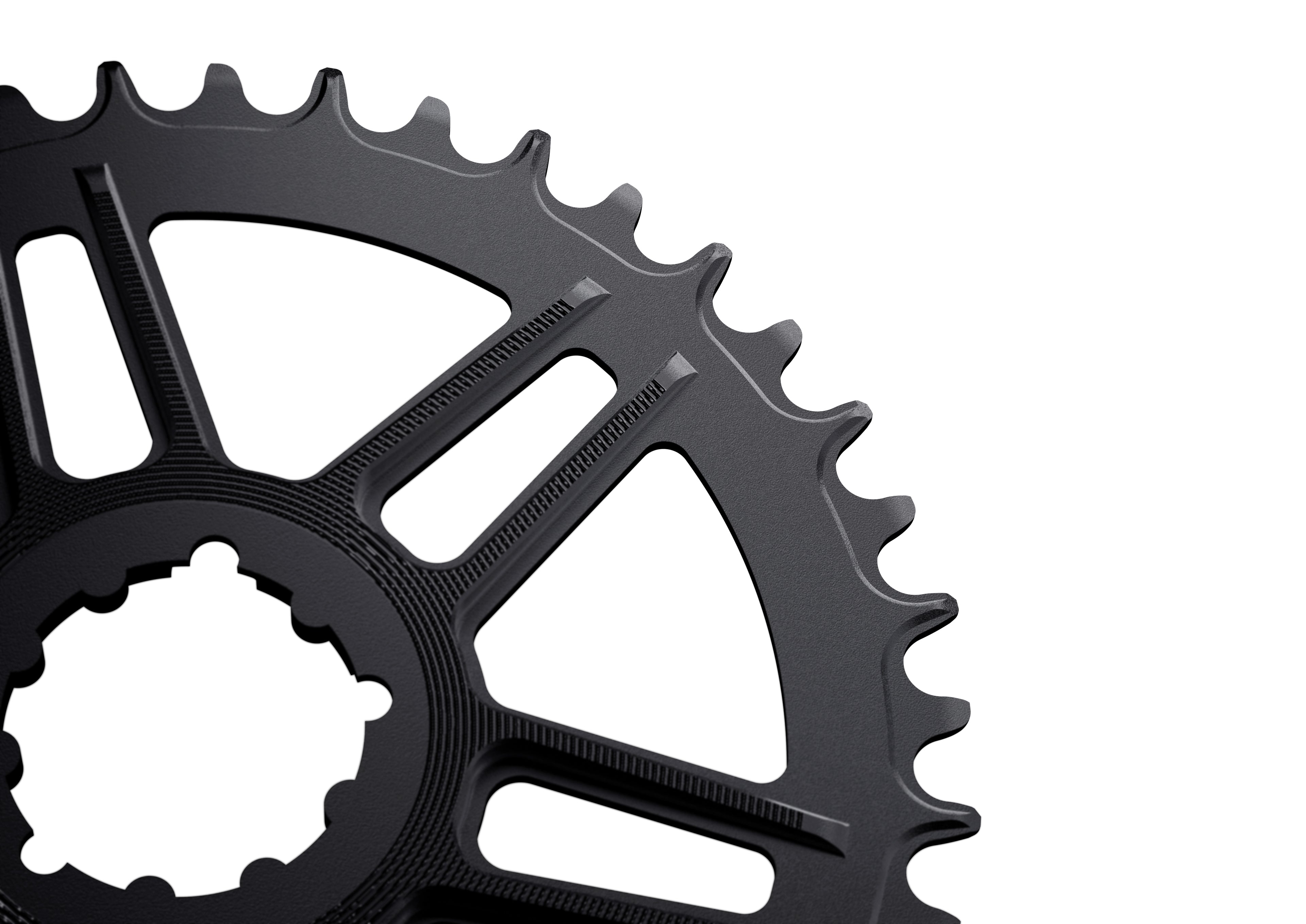

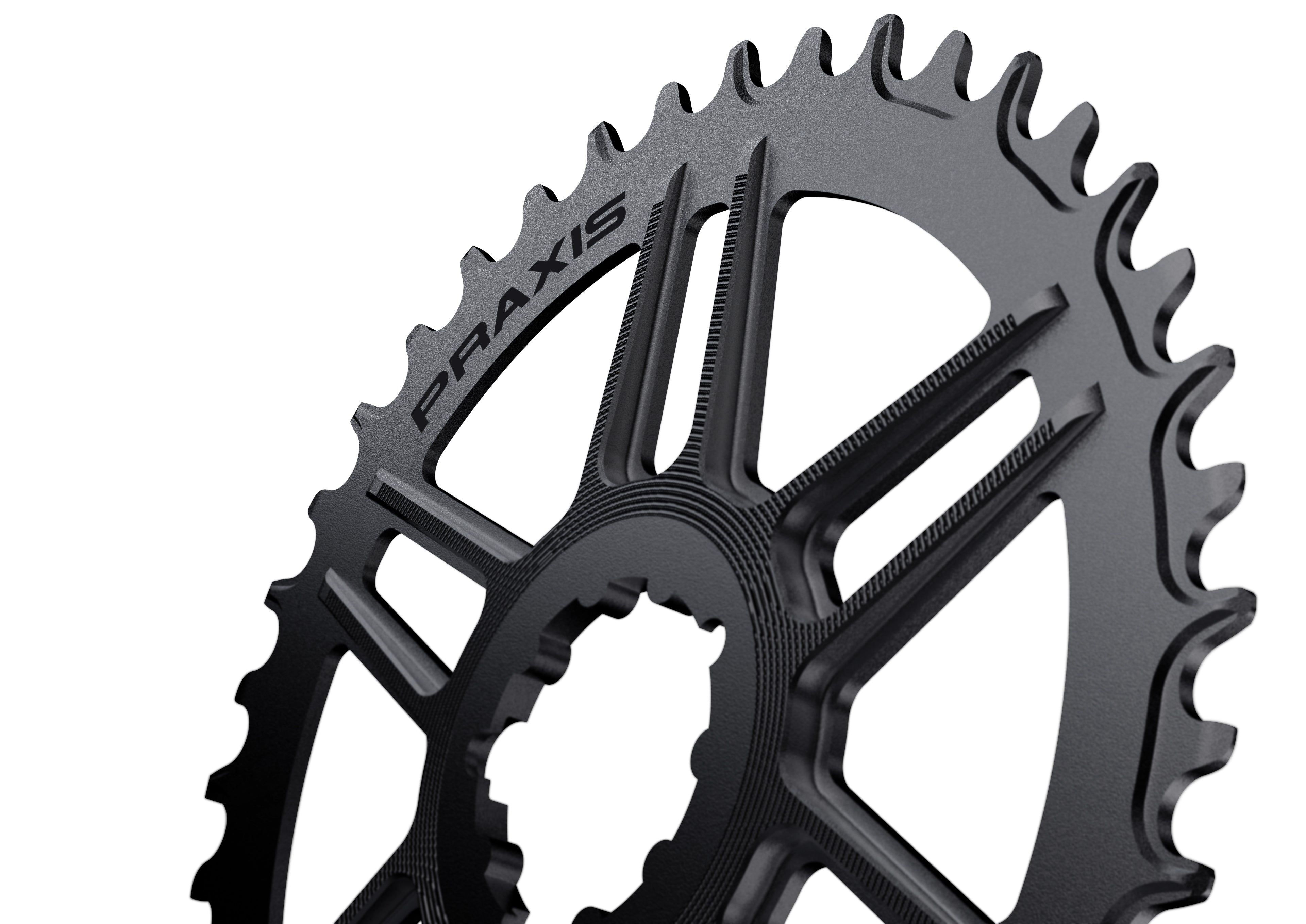

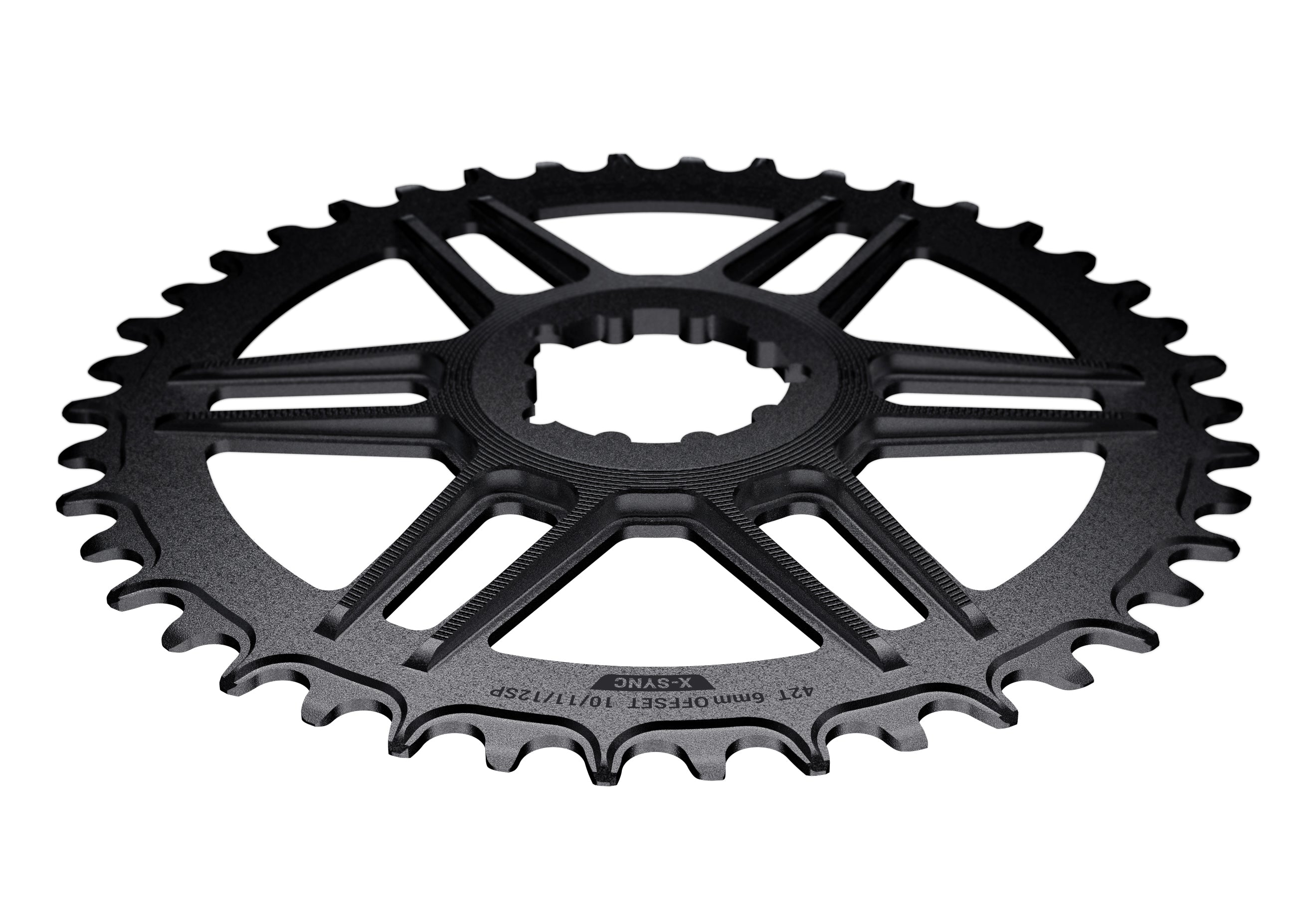

Gravel/Road 1x Chainring Direct Mount (WIDE/NARROW)
Our new Narrow/Wide 1X rings for Road/Gravel/CX are here. Made for the 3-Bolt Direct Mount interface and with the highest level of chain retention.
Whether you’re cyclocrossing in mud or gravel grinding a fireroad...Praxis 1X rings are ready for action with our new Narrow/Wide tooth profile.
36T, 38T, 40T, 42T, 44T, 46T, 48T and 50T!
|INTRUCTIONS||⚠️ MANUAL HERE|
|PRODUCT||DM-1X | 3-Bolt Direct Mount Road/Gravel/CX Rings|
|BUY THIS IF :||You have a 3-Bolt DM Road crank and you are wanting to change or refresh the 1X ring on it.|
|New shape/style - Please see all photos above.|
|MFG||Forged & Machined | 7075-T6 Aluminum | Hard Blk Anodized
Narrow/Wide tooth profile
|GEARING/CHAINLINE||36T, 38T, 40T, 42T, 44T, 46T, 48T and 50T
45.5mm CX1 chainline when installed on DM Road Crank
48mm Gravel 1X chainline when installed on our DM "GR" cranks
|AVG. WEIGHTS||36T = 94g | 42T = 110g | 48T = 166g|
|CHAIN||10 / 11 /12sp Compatible | Shimano/SRAM/KMC|
|DRIVETRAIN||SHIMANO -Compatible with both Di2 and mechanical Shimano 10/11/12sp.
SRAM -Compatible with both electronic and mechanical SRAM 10/11/12sp.
CAMPY - Not compatible with Campy 11/12/13sp chains.
|NOTE!||REAR DER- Must use a ‘CLUTCH’ type rear derailleur.
In rough terrain, or just for security, we still recommend use of an upper guide
|TECHNOLOGY||All new Narrow/Wide tooth profile|
